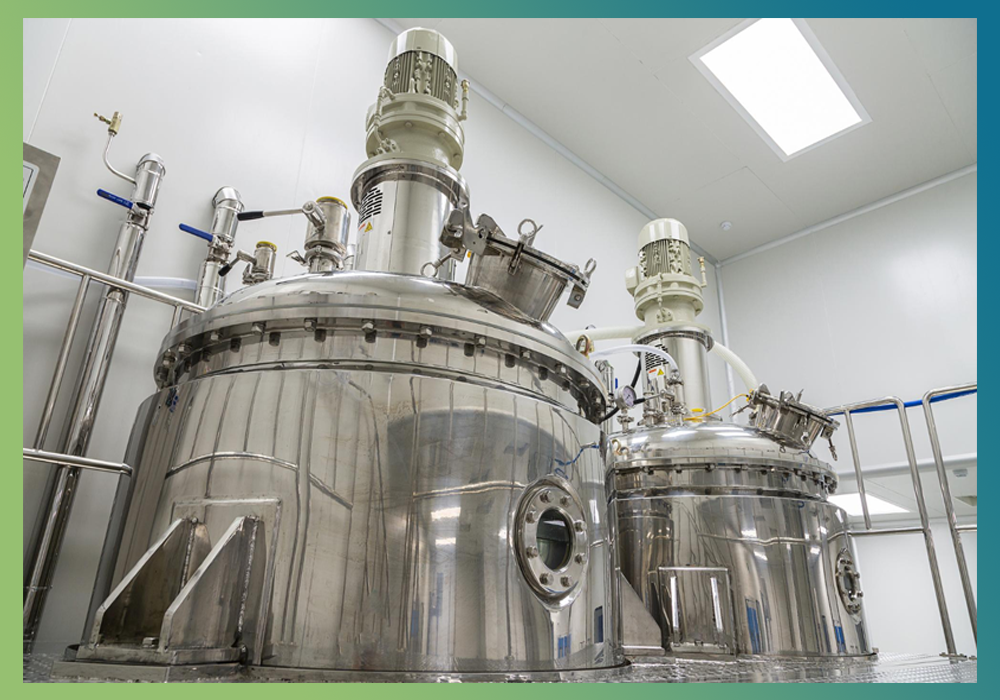

Specially designed Agitators to handle even highly viscous materials.
Stirrer rotation RPM up to 100 , ideal for fine crystallization.
All kettles have double mechanical seals for high temperature and high vacuum distillation.
Double start limpet coils used for heating and cooling respectively.
MOC of all distillation reactors is SS316L.
COOLING DETAILS

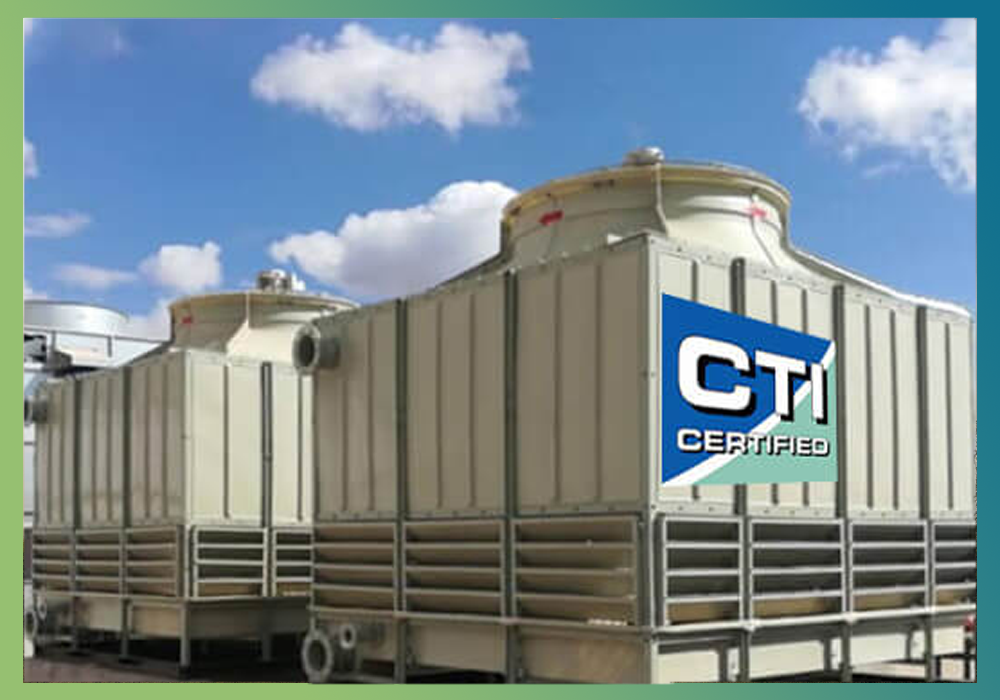

(330 TR) "Advance" make cooling tower.
The cooling tower is placed at 100 feet height.
Highly efficient cooling as the wind velocity at 70 feet height is more.
The pumping capacity required is less as the cooling tower is placed exactly above the condensers resulting in very less head required for pumping.
As the cooling tower placed above the condensers in case of power failure the condensers are filled with water from the cooling tower basin by gravity resulting in no vapor loss.
Upto 45sq.mtr 4pass shell and tube type fully SS316L condensers and product coolers provide efficient cooling.
(40 TR) Chilling plant provided in all condensors and product collers.
COLUMNDETAILS

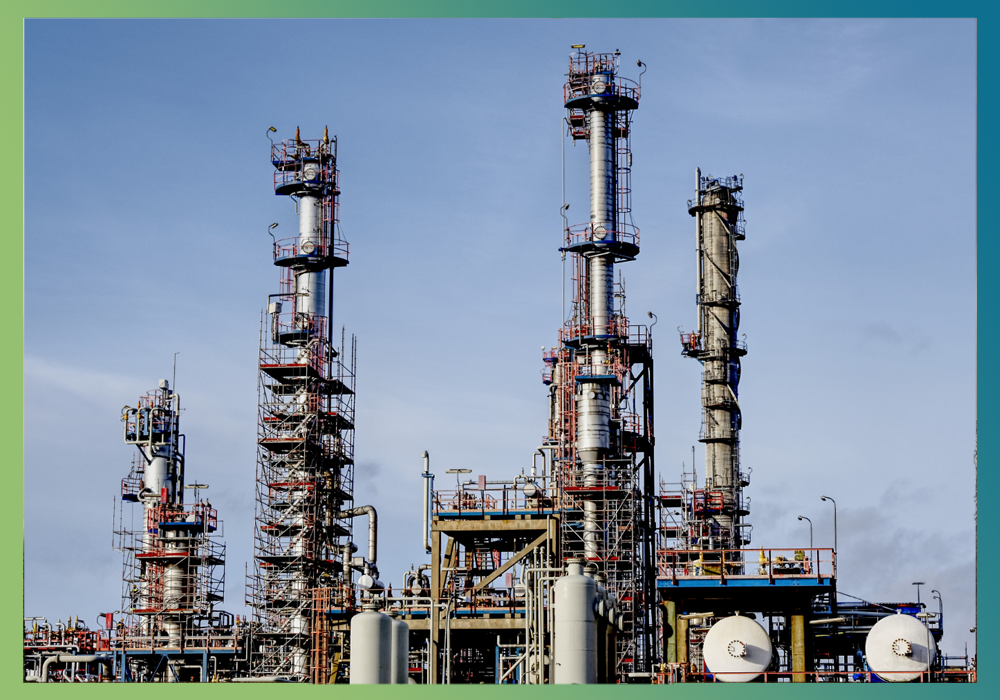

Meticulously designed columns can handle high vapor load at the same time provides high separation.
Column packed height up to 17 Mtr - Diameter up to 600 mm.
Suzler make wire gauge and sheet metal packing's with appropriate internals provide upto 65 Theoretical stages and very less pressure drop.
Separate 5 Mtr packed height column for high vacuum fractional distillation.
Tongue & groove flange in all column joints provides precise alignment and very less vacuum leakage.
Temperature & pressure monitoring on all sections of column.
MaterialStorage Facility
warehouse

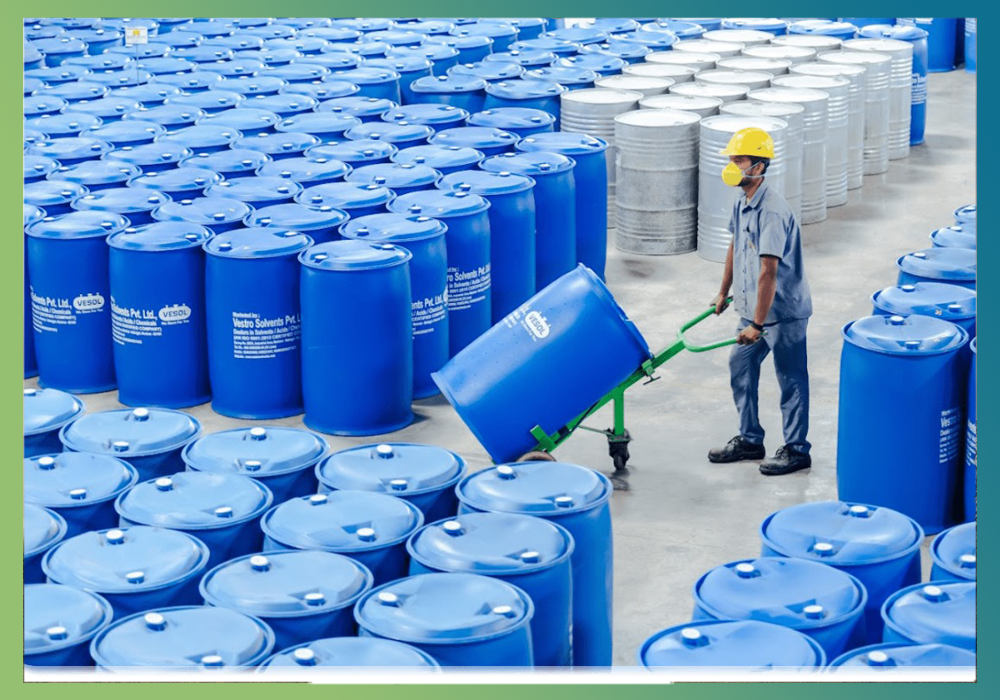

Ample space for storage of filled and empty drums.
Fork lift facility for loading and unloading of drums.
